Advance 2LH1100 Pump Gearbox

The speed input range of the Advance 2LH1100 pump gearbox is 1700 RPM, with engine input power 1100 kW. the reduction ratio is 1.2 : 1,the input and output shafts rotate in the same direction.
Advance 2LH1100 pump gearbox is composed of transmission shaft, output coupling, input coupling, oil pressure gauge, oil Filter, control system, oil pump and other important components.
Advance 2LH1100 pump gearboxes provides two types of control system which are electric control and pneumatic control for customers to choose. To meet the different requirement of coupling with different engine brand and models, Advance 2LH1100 pump gearboxes available in engine flywheel sizes.

Advantages Of Advance 2LH1100 Pump Gearbox

Gearbox novel structure, so that its use becomes very reliable. The excellent design makes the gearbox and engine arrangement more soft and smooth.
It can be matched with high-speed diesel engines at home and abroad, and can be arranged in vertical, horizontal and inclination according to the needs of users.
The gearbox have adapted to combined design, and all running parts have been carefully designed and machined to the highest standards for less wasted fuel, smooth operation which can be fitted to most engine models.

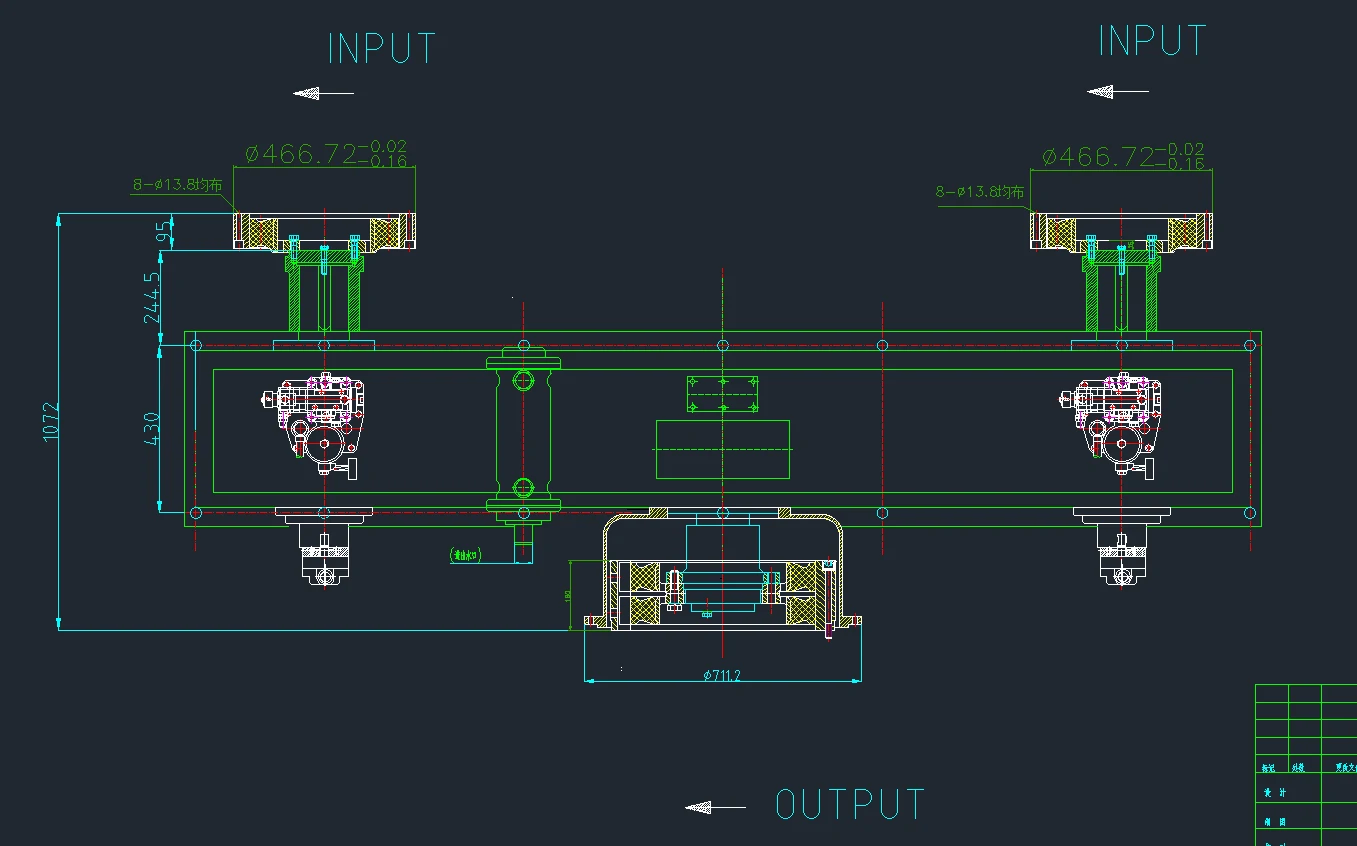

1-stage deceleration, the input and output levels are off-center, and the running direction is the same. It has the functions of double input, single output and clutch deceleration.
Professional gearbox specialists and after-sales service, spare parts directly available from stock.

Technical Specifications

Gearbox Model:	2LH1100
Input Speed:	1100 RPM
Reduction Ratio:	1.2 : 1
Payment Terms:	T/T ,L/C

Coming soon

Model	Input Speed	Reduction Ratio	Trans. Capacity	Rated Thrust	Net Weight
2LH1100	1700 r/min	1.2 : 1	N/A	N/A	N/A
——END——

Technical Specifications of Advance 2LH1100 Marine Gearbox
Model	2LH1100	Power(kW)	1100	Center Distance(mm)	1100
Input Speed(r/min)	1700	Reduction Ratio(i)	2	Trans. Capacity(kW/rpm)	1.12
	400-1150		2.5		0.89
	400-1350		3		0.75
	400-1600		3.5		0.65
	400-1800		4		0.57
	400-2000		4.5		0.5
			5		0.45
			5.5		0.4
			6		0.38
Rated Thrust(kN)	175	Net Weight(kg)	N/A	Controls	Electrical/Pneumatical
——END——

The Marine gearbox has the function of reverse, clutch, deceleration and the thrust of the propeller, which is equipped with the main engine to form the Marine power unit.
The “transfer capacity” refers to the ratio of the engine’s rated power to the rated speed, and the reduction ratio corresponds to the transmission capacity, which should be less than the number be offered.
The gearbox and engine shafting are not allowed to use rigid connection, and the bracket is recommended to be installed on the same rigid support.If the engine is mounted on the elastic support, and the gearbox is installed on the rigid support, please contact the technical department of the company to select the suitable high elastic coupling.
The weight of the gearbox is approximation, for different reduction ratio the weight is different.
Due to the technical improvement of the products, the products may change without notice. For any other questions please contact our sales engineer.

ANGLE OF TILT
Name	Transverse Direction		Longitudinal Direction
	Heeling	Rolling	Heeling	Rolling
Marine Gearbox	15°	22.5°	5°	7.5°
——END——

Optional Accessories of Advance 2LH1100 Pump Gearbox
Bell Housing	195C	Input Coupling	1. Highly Flexible Coupling
	/		2. Toothed Input Coupling
Direction of Input Shaft Rotation	1. Anti-clockwise (Facing the Output End)	VDO	Gearbox Pressure Visible on Bridge
	2. Clockwise (Facing the Output End)
Alarm Device	1. Temperature	Control System	1. Mechanical
	2. Working Pressure		2. Electrical
	3. Lubricating Oil Pressure		3. Pneumatical
Gauge	Oil Temperature

Modifiable Components of Advance 2LH1100 Pump Gearbox
Special Reduction Ratio	According to Customer’s Special Requirements	Replacement of Imported Bearing	1. Stronger Endurance
			2. Longer Service Life
			3. Higher Limit Speed
PTO	Power Take Off	Output Shaft Coupling	Based on Customers data to produce
——END——

Pump Gearboxs Conventional Wearing Parts
External disc	Internal disc	Sealing	Piston ring
Gasket	Rubber sealing	Thrust plate	Filter
Coil type filter	Packing	O ring	Input shaft assembly
Transmission shaft assemby	Output shaft assembly	Hydraulic control system
——END——
